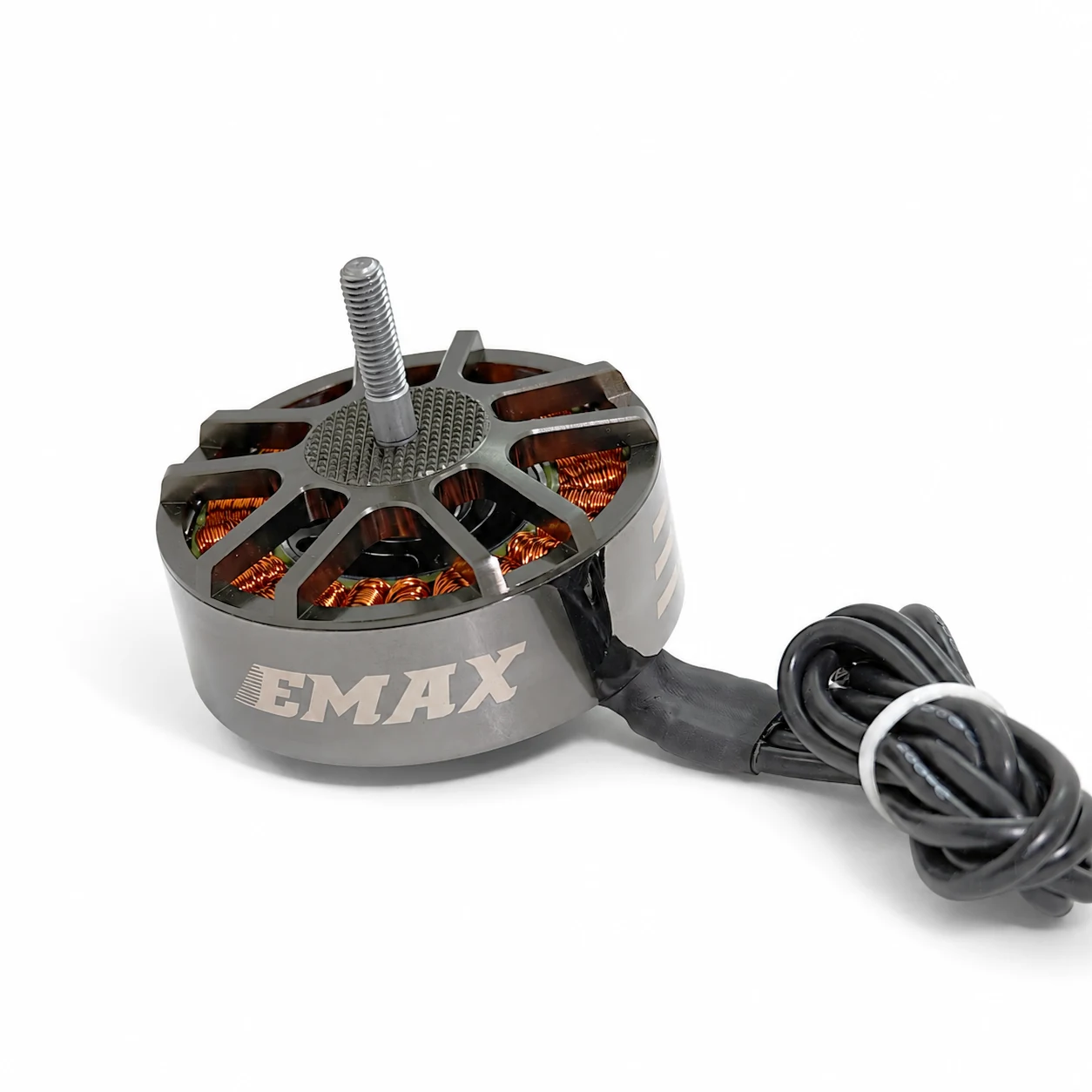

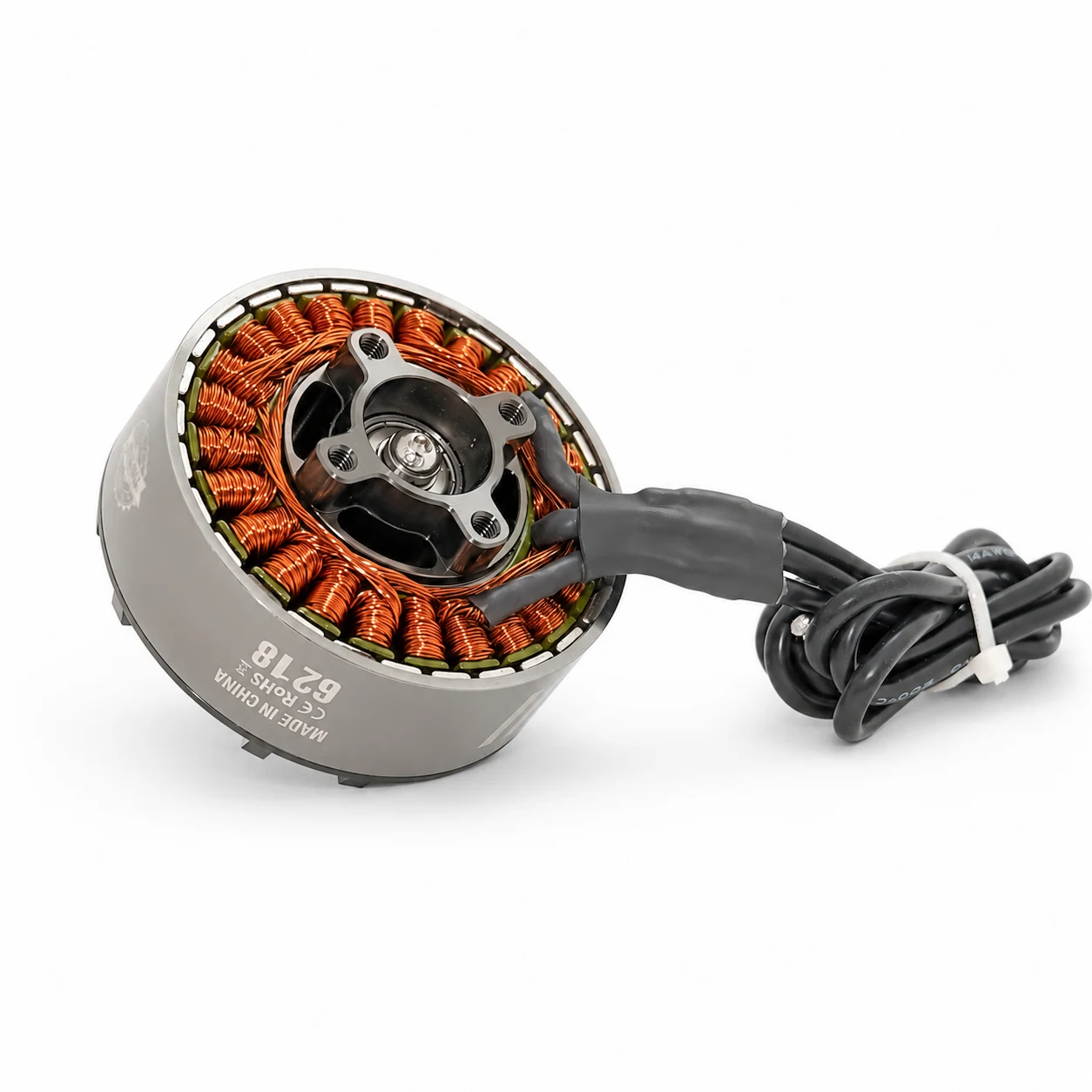

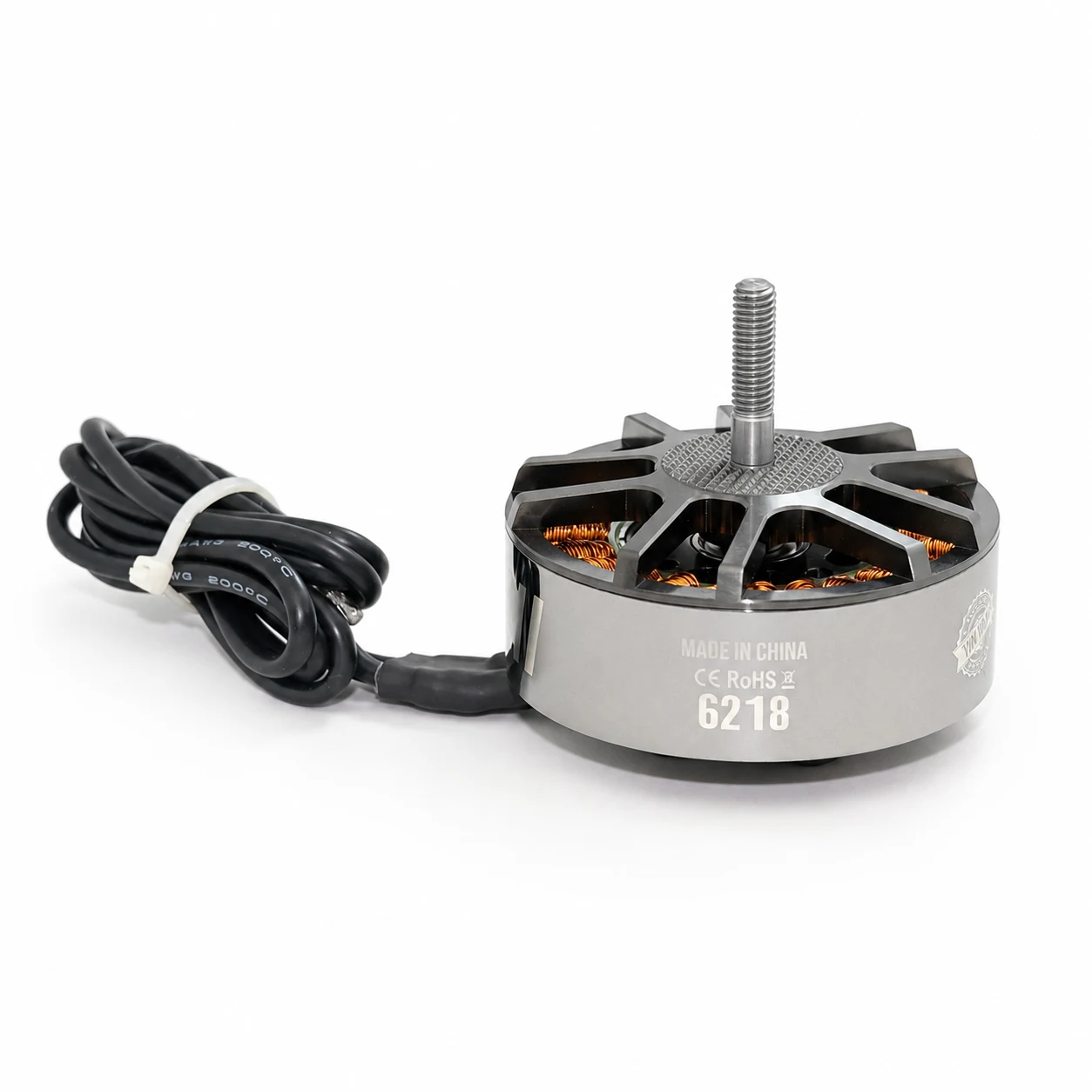

ECO II 6218 Brushless Motor

A high-torque 6218-class aircraft motor in 180KV and 200KV configurations for 12S power systems, 18 to 22 inch propellers, heavy-lift multirotors, and long-endurance platforms.

180KV200KV

Buy on EMAX Send Inquiry Back to Motors

KEY FEATURES

Designed for FPV performance tuning

Two low-KV configurations are optimized for 12S power systems and 18 to 22 inch propellers.
A 24N28P framework, precision bearing, steel shaft, multi-strand winding, and anodized structure support reliable high-load operation.
A 30 x 30 mm four-hole M4 mounting pattern, 400 mm 14 AWG silicone leads, and an M6 propeller shaft simplify large-aircraft integration.
Verified load-test data covers 11 propeller combinations with voltage, current, thrust, power, efficiency, RPM, and throttle measurements.

SPECIFICATIONS

Product snapshot

Stator Size: 6218
Series: ECO II
KV Options: 180KV, 200KV
Motor Dimensions: 69.3 x 66.2 mm
Framework: 24N28P
Battery Cells: 12S
Weight: 431 g including wires
Propeller: 18-22 inch
Bearing Shaft: 6 mm
Prop Adapter Shaft Thread: M6
Shaft Thread: CW
Mounting Pattern: 30 x 30 mm, 4 x M4
Lead: 400 mm 14 AWG silicone wire

VARIANT SPECIFICATIONS

KV configuration matrix

KV	Battery cells	Propeller	Idle current	Internal resistance	Peak current	Maximum power
180KV	12S	18-22 inch	1.3 A @ 10 V	42 mOhm	73.7 A @ 12S	3510 W @ 12S
200KV	12S	18-21 inch	1.5 A @ 10 V	39 mOhm	79 A @ 12S	3765 W @ 12S

OFFICIAL GRAPHICS

Engineering drawing and specifications

ECO II 6218 Brushless Motor technical specifications
SPECIFICATIONS
Framework	24N28P
Length	66.2 mm
Diameter	69.3 mm
Battery cells	12S
Recommended propeller - 180KV	18-22 inch
Recommended propeller - 200KV	18-21 inch
Weight (with wire)	431 g
Prop adapter shaft thread	M6
Bearing shaft	6 mm
Shaft thread	CW
FEATURES
Precision bearing
Steel shaft
Anodized finish
30 x 30 mm, 4 x M4 mounting-hole pattern
Multi-strand winding
400 mm 14 AWG silicone wire

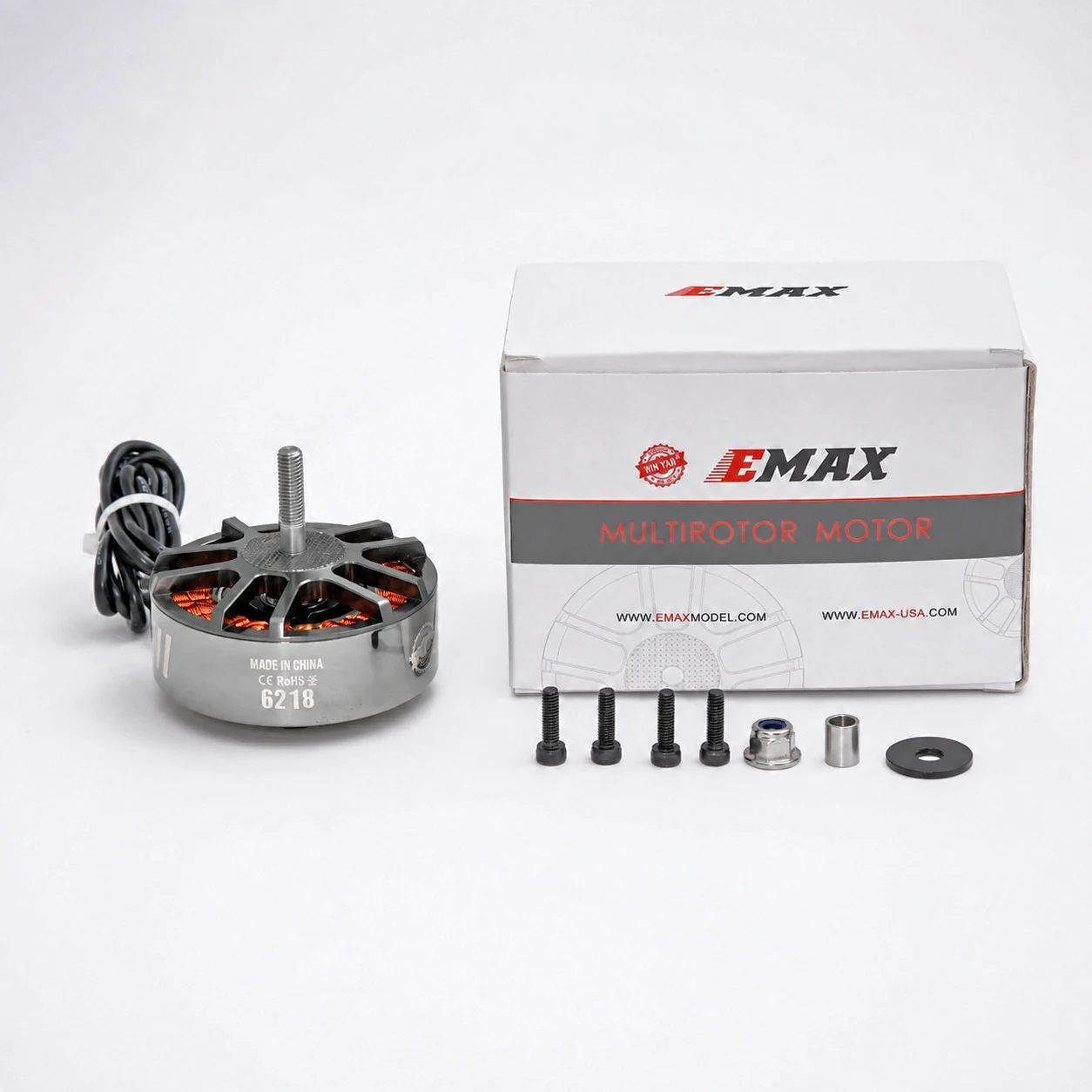

PACKAGE INCLUDES
4 x M4 x 14 screws
1 x steel M6 nyloc nut
1 x propeller washer

LOAD TEST DATA

Verified performance data

The following measurements are from EMAX load-test records. Results may vary with battery, propeller, environment, and installation conditions.

180KV

GF18*10 (3-blade )

ECO II 6218 Brushless Motor 180KV - GF18*10 (3-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.07	2.45	1110	117.77	9.43	2381	30
48.06	3.6	1510	173.02	8.73	2768	35
48.05	5.22	2018	250.82	8.05	3146	40
48.04	7.04	2574	338.2	7.61	3525	45
48.02	9.41	3148	451.87	6.97	3880	50
48.02	12.01	3645	576.72	6.32	4241	55
47.99	14.94	4284	716.97	5.98	4597	60
47.97	18.62	4942	893.2	5.53	4944	65
47.94	22.49	5623	1078.17	5.22	5276	70
47.91	27.1	6586	1298.36	5.07	5596	75
47.88	32.39	7419	1550.83	4.78	5893	80
47.85	38.81	8406	1857.06	4.53	6188	85
47.82	45.22	9294	2162.42	4.3	6495	90
47.78	52.42	10342	2504.63	4.13	6791	95
47.73	61.89	11533	2954.01	3.9	7080	Max

HQ20*10 (3-blade )

ECO II 6218 Brushless Motor 180KV - HQ20*10 (3-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.07	2.71	1294	130.27	9.93	2370	30
48.06	3.99	1778	191.76	9.27	2752	35
48.06	5.73	2348	275.38	8.53	3130	40
48.03	7.69	2927	369.35	7.92	3507	45
48.02	10.03	3480	481.64	7.23	3867	50
48	12.91	4181	619.68	6.75	4209	55
47.99	16.35	5030	784.64	6.41	4552	60
47.96	20.8	5910	997.57	5.92	4881	65
47.93	24.82	6663	1189.62	5.6	5211	70
47.9	29.84	7592	1429.34	5.31	5515	75
47.88	35.3	8409	1690.16	4.98	5826	80
47.85	41.46	9388	1983.86	4.73	6123	85
47.8	47.77	10312	2283.41	4.52	6433	90
47.76	56.33	11414	2690.32	4.24	6718	95
47.72	64.63	12384	3084.14	4.02	7017	Max

FL21*10CF (2-blade )

ECO II 6218 Brushless Motor 180KV - FL21*10CF (2-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.08	2.32	1205	111.55	10.8	2394	30
48.06	3.48	1622	167.25	9.7	2779	35
48.07	4.81	2094	231.22	9.06	3164	40
48.05	6.71	2671	322.42	8.28	3548	45
48.03	8.83	3280	424.1	7.73	3906	50
48.02	11.31	3848	543.11	7.09	4264	55
47.99	14.55	4663	698.25	6.68	4618	60
47.98	17.76	5379	852.12	6.31	4968	65
47.95	21.7	6236	1040.52	5.99	5293	70
47.93	26.17	6974	1254.33	5.56	5626	75
47.91	31.54	7951	1511.08	5.26	5909	80
47.88	37.22	9015	1782.09	5.06	6220	85
47.84	43.64	9954	2087.74	4.77	6523	90
47.8	50.63	10958	2420.11	4.53	6824	95
47.74	59.87	12248	2858.19	4.29	7109	Max

FL22*10CF (2-blade )

ECO II 6218 Brushless Motor 180KV - FL22*10CF (2-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.06	2.73	1378	131.2	10.5	2370	30
48.06	3.95	1883	189.84	9.92	2753	35
48.05	5.75	2500	276.29	9.05	3130	40
48.04	7.93	3140	380.96	8.24	3503	45
48.03	10.17	3791	488.47	7.76	3855	50
48.01	13.09	4483	628.45	7.13	4200	55
47.99	16.6	5320	796.63	6.68	4545	60
47.96	20.22	5976	969.75	6.16	4888	65
47.93	25.1	7049	1203.04	5.86	5195	70
47.9	29.64	7825	1419.76	5.51	5513	75
47.88	35.64	8761	1706.44	5.13	5815	80
47.85	42.66	9939	2041.28	4.87	6099	85
47.8	49.79	10991	2379.96	4.62	6394	90
47.76	58.72	12265	2804.47	4.37	6667	95
47.69	68.8	13539	3281.07	4.13	6951	Max

JXF22*10CF (2-blade )

ECO II 6218 Brushless Motor 180KV - JXF22*10CF (2-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.06	2.94	1468	141.3	10.39	2355	30
48.06	4.31	2003	207.14	9.67	2741	35
48.05	6.18	2623	296.95	8.83	3114	40
48.04	8.44	3313	405.46	8.17	3482	45
48.03	11.1	4071	533.13	7.64	3826	50
48	14.5	4846	696	6.96	4155	55
47.97	18.27	5730	876.41	6.54	4497	60
47.94	22.35	6516	1071.46	6.08	4829	65
47.91	27.07	7431	1296.92	5.73	5146	70
47.89	32.65	8273	1563.61	5.29	5449	75
47.86	38.56	9227	1845.48	5	5748	80
47.83	44.8	10289	2142.78	4.8	6056	85
47.79	52.43	11398	2505.63	4.55	6345	90
47.73	62.92	12787	3003.17	4.26	6601	95
47.66	73.66	14169	3510.64	4.04	6866	Max

200KV

HQ18*9 (3-blade )

ECO II 6218 Brushless Motor 200KV - HQ18*9 (3-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.09	2.46	1136	118.3	9.6	2591	30
48.08	3.56	1493	171.16	8.72	2996	35
48.07	5.15	1997	247.56	8.07	3406	40
48.06	6.95	2494	334.02	7.47	3818	45
48.05	9.3	3074	446.87	6.88	4197	50
48.02	11.78	3692	565.68	6.53	4594	55
48.01	14.96	4362	718.23	6.07	4987	60
47.99	18.17	4954	871.98	5.68	5356	65
47.96	22.86	5829	1096.37	5.32	5692	70
47.93	27.26	6543	1306.57	5.01	6039	75
47.9	32.18	7319	1541.42	4.75	6376	80
47.88	38.31	8235	1834.28	4.49	6707	85
47.85	44.18	9099	2114.01	4.3	7052	90
47.81	51.22	9988	2448.83	4.08	7376	95
47.75	60.63	11147	2895.08	3.85	7672	Max

GF18*10 (3-blade )

ECO II 6218 Brushless Motor 200KV - GF18*10 (3-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.09	3.03	1293	145.71	8.87	2546	30
48.08	4.52	1791	217.32	8.24	2953	35
48.06	6.38	2340	306.62	7.63	3360	40
48.05	8.8	2985	422.84	7.06	3748	45
48.03	11.37	3585	546.1	6.56	4122	50
48.02	14.78	4282	709.74	6.03	4498	55
47.99	18.26	5030	876.3	5.74	4876	60
47.96	22.74	5764	1090.61	5.29	5229	65
47.94	28.02	6584	1343.28	4.9	5550	70
47.91	33.02	7474	1581.99	4.72	5888	75
47.87	38.49	8309	1842.52	4.51	6226	80
47.84	46.46	9377	2222.65	4.22	6523	85
47.79	53.52	10273	2557.72	4.02	6851	90
47.74	63.49	11461	3031.01	3.78	7139	95
47.68	71.92	12413	3429.15	3.62	7463	Max

HQ20*10 (3-blade )

ECO II 6218 Brushless Motor 200KV - HQ20*10 (3-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.08	3.15	1472	151.45	9.72	2528	30
48.07	4.83	2019	232.18	8.7	2930	35
48.06	6.76	2662	324.89	8.19	3332	40
48.04	9.37	3354	450.13	7.45	3720	45
48.02	12.5	4092	600.25	6.82	4077	50
48.01	15.75	4800	756.16	6.35	4456	55
47.99	19.88	5739	954.04	6.02	4812	60
47.95	24.8	6596	1189.16	5.55	5165	65
47.92	29.7	7454	1423.22	5.24	5477	70
47.9	35.16	8234	1684.16	4.89	5827	75
47.87	41.9	9284	2005.75	4.63	6137	80
47.81	49.83	10513	2382.37	4.41	6427	85
47.76	59.3	11711	2832.17	4.13	6729	90
47.71	67.33	12610	3212.31	3.93	7045	95
47.65	79.02	13857	3765.3	3.68	7338	Max

FL19*10CF (2-blade )

ECO II 6218 Brushless Motor 200KV - FL19*10CF (2-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.07	2.32	1022	111.52	9.16	2612	30
48.07	3.31	1376	159.11	8.65	3021	35
48.06	4.62	1801	222.04	8.11	3428	40
48.05	6.49	2307	311.84	7.4	3836	45
48.04	8.21	2802	394.41	7.1	4227	50
48.03	10.64	3394	511.04	6.64	4629	55
48.02	13.12	3998	630.02	6.35	5032	60
47.99	16.32	4603	783.2	5.88	5408	65
47.96	20.82	5398	998.53	5.41	5756	70
47.93	24.53	6115	1175.72	5.2	6104	75
47.91	29.41	6902	1409.03	4.9	6452	80
47.89	33.55	7363	1606.71	4.58	6819	85
47.85	40.1	8474	1918.79	4.42	7139	90
47.81	46.44	9340	2220.3	4.21	7478	95
47.78	54.02	10213	2581.08	3.96	7804	Max

FL20*10CF (2-blade )

ECO II 6218 Brushless Motor 200KV - FL20*10CF (2-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.07	2.53	1160	121.62	9.54	2590	30
48.06	3.73	1557	179.26	8.69	2994	35
48.05	5.13	2036	246.5	8.26	3404	40
48.04	6.96	2578	334.36	7.71	3810	45
48.02	9.3	3164	446.59	7.08	4196	50
48.02	11.93	3818	572.88	6.66	4584	55
47.99	15	4457	719.85	6.19	4981	60
47.97	18.57	5214	890.8	5.85	5344	65
47.95	22.31	5883	1069.76	5.5	5698	70
47.92	26.9	6730	1289.05	5.22	6036	75
47.89	32.16	7564	1540.14	4.91	6365	80
47.86	38.62	8674	1848.35	4.69	6692	85
47.82	44.01	9167	2104.56	4.36	7049	90
47.78	52.24	10179	2496.03	4.08	7355	95
47.74	60.71	11309	2898.3	3.9	7671	Max

FL21*10CF (2-blade )

ECO II 6218 Brushless Motor 200KV - FL21*10CF (2-blade )
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
48.07	2.8	1377	134.6	10.23	2551	30
48.06	4.23	1864	203.29	9.17	2952	35
48.05	6.03	2425	289.74	8.37	3364	40
48.04	8.2	3057	393.93	7.76	3761	45
48.02	10.75	3712	516.22	7.19	4137	50
48	13.54	4400	649.92	6.77	4525	55
47.98	17.61	5396	844.93	6.39	4877	60
47.96	21.81	6152	1046.01	5.88	5241	65
47.93	25.98	6999	1245.22	5.62	5593	70
47.89	31.34	7835	1500.87	5.22	5914	75
47.86	37.21	8899	1780.87	5	6234	80
47.83	44.28	9887	2117.91	4.67	6551	85
47.79	52.27	11026	2497.98	4.41	6856	90
47.73	60.68	12003	2896.26	4.14	7176	95
47.69	70.58	13123	3365.96	3.9	7486	Max

APPLICATIONS

Recommended use

heavy-lift multirotor platforms18 to 22 inch propeller systemslong-endurance aircraftindustrial aerial platformslarge custom aircraft projects
