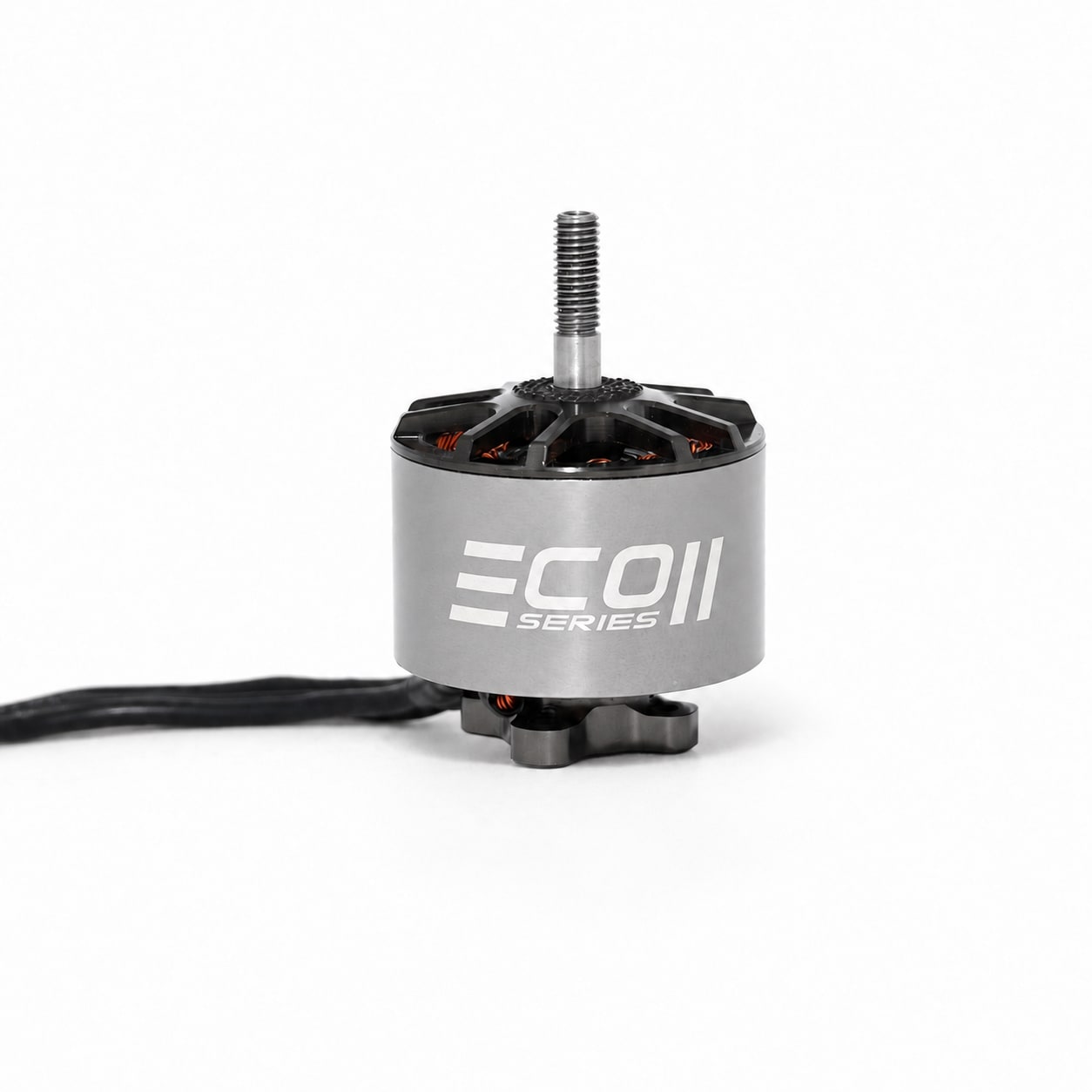

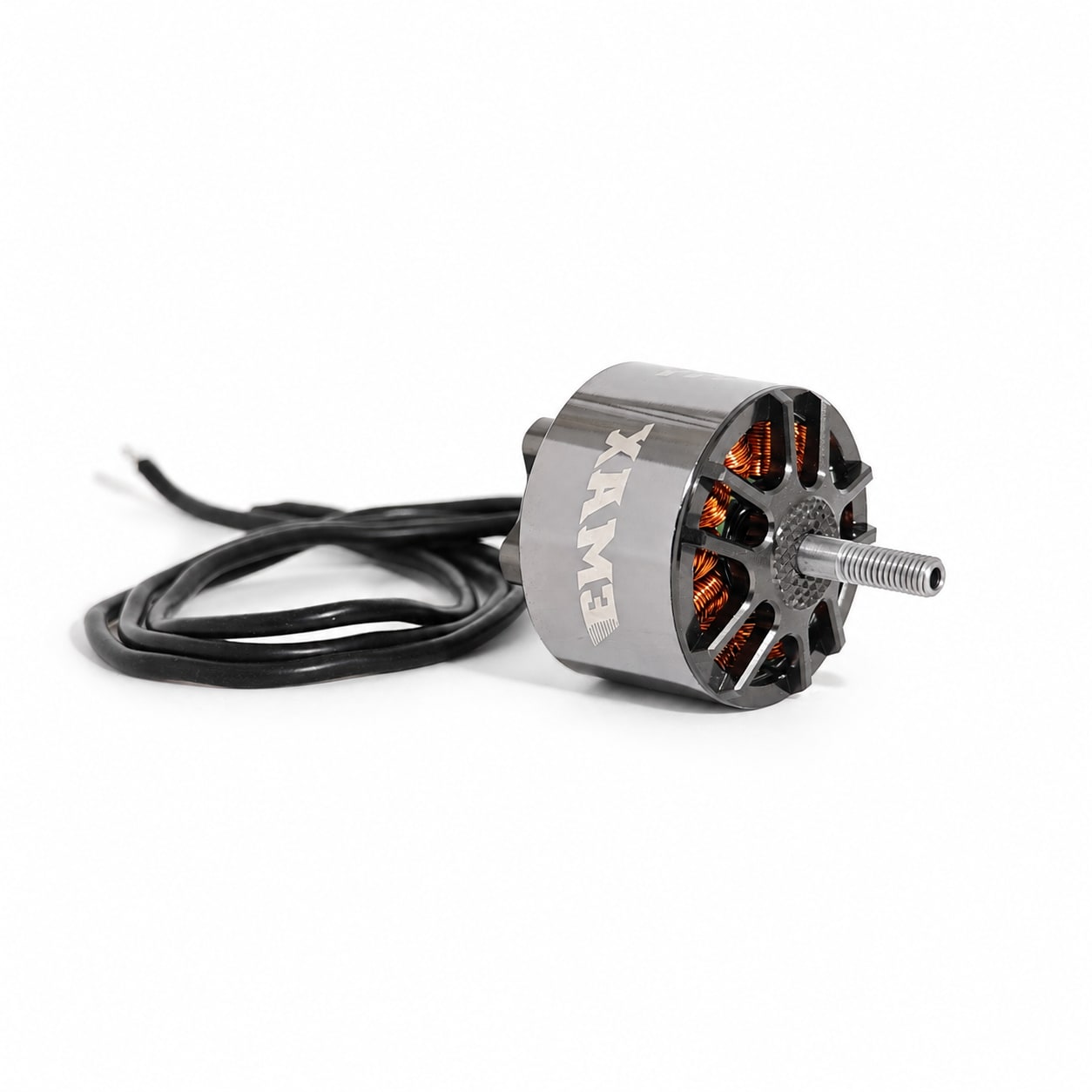

ECO II 3220 Brushless Motor

A direct upgrade from 3115-class motors, delivering stronger power, more agile flight control, and confident response through rapid maneuvers.

500KV700KV1000KV

Buy on EMAX Send Inquiry Back to Motors

KEY FEATURES

Designed for FPV performance tuning

Three KV choices cover 6S through 12S power systems for 8 to 11 inch propellers.

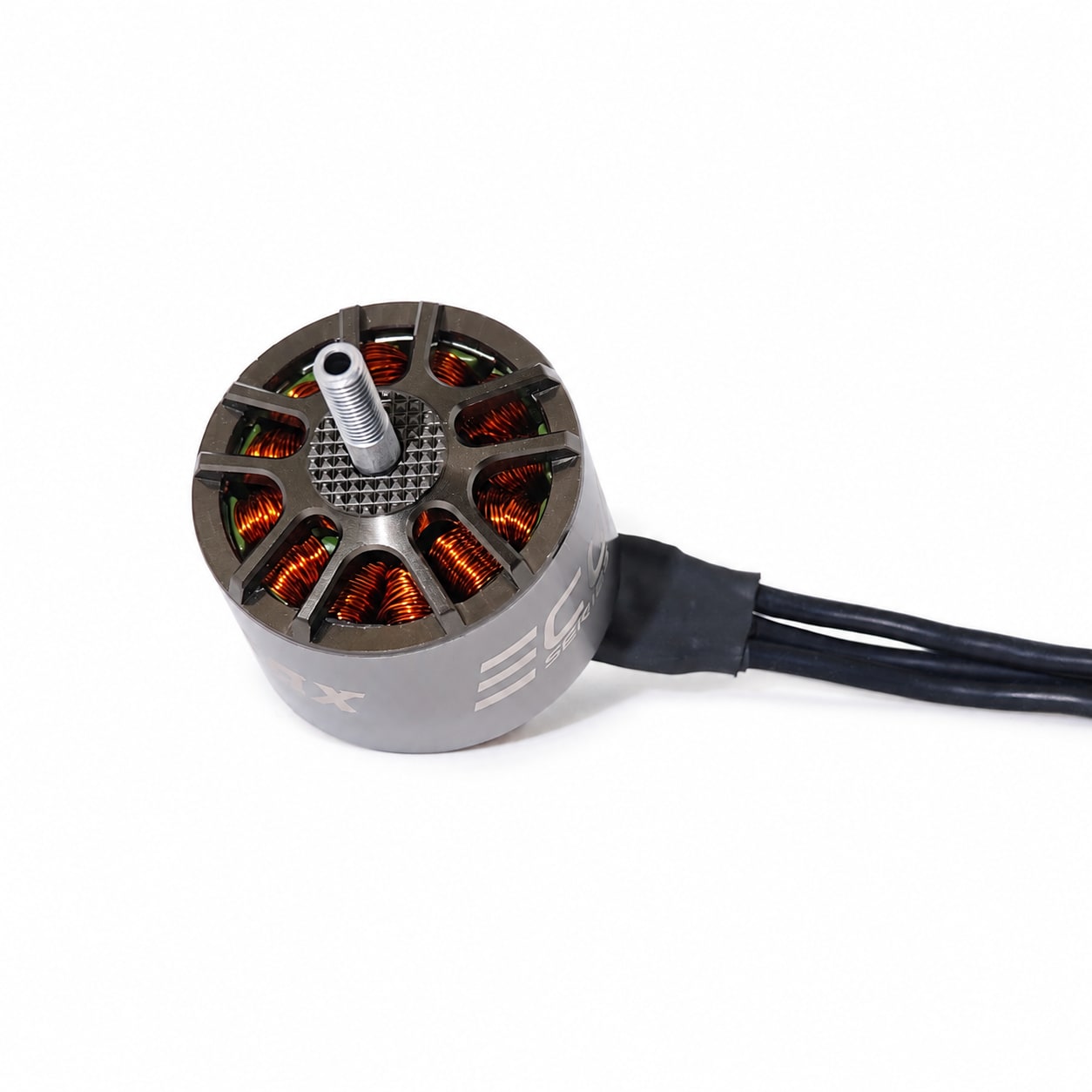

A 12N14P framework, three precision bearings, a steel shaft, and multi-strand winding support stable high-load operation.

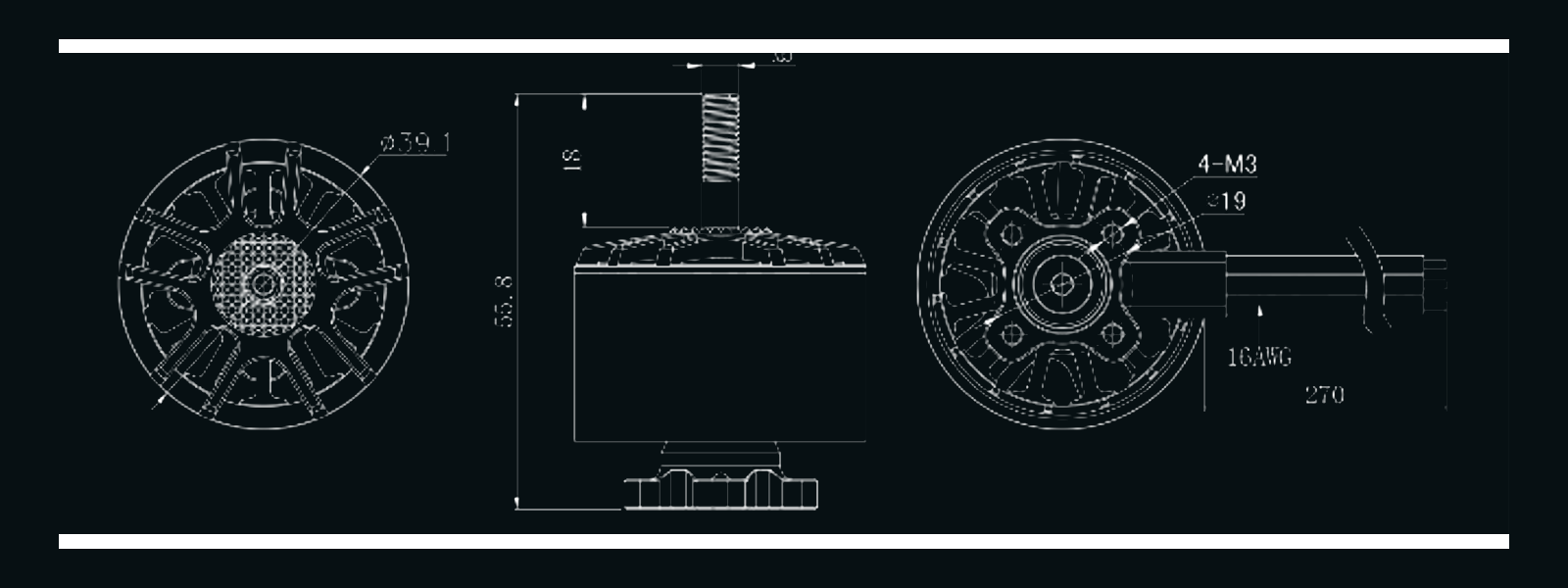

The compact 39.1 mm diameter body uses a 19 x 19 mm four-hole M3 mounting pattern and 270 mm 16 AWG silicone leads.
Verified load-test data is provided for 500KV, 700KV, and 1000KV versions across eleven propeller and voltage combinations.

SPECIFICATIONS

VARIANT SPECIFICATIONS

KV configuration matrix

KV	Battery cells	Propeller	Idle current	Internal resistance	Peak current	Maximum power
500KV	12S	10 to 11 inch	1.5 A @ 10 V	58 mOhm	74.4 A @ 12S	3520 W @ 12S
700KV	6-8S	10 to 11 inch	2.3 A @ 10 V	36 mOhm	82.8 A @ 8S	2589 W @ 8S
1000KV	6-8S	8 to 10 inch	3.8 A @ 10 V	22 mOhm	127.4 A @ 8S	3987 W @ 8S

OFFICIAL GRAPHICS

LOAD TEST DATA

The following measurements are from EMAX load-test records. Results may vary with battery, propeller, environment, and installation conditions.

500KV

ECO II 3220 Brushless Motor 500KV - GF 10 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
47.99	3.13	825	150.2	5.49	6511	30
47.96	6.33	1419	303.6	4.67	8455	40
47.91	11.11	2156	532.3	4.05	10427	50
47.83	17.75	2972	849	3.5	12264	60
47.74	26.39	3869	1259.9	3.07	13917	70
47.65	37.01	4791	1763.5	2.72	15512	80
47.53	50.25	5825	2388.4	2.44	17060	90
47.39	66.47	6823	3150	2.17	18420	100

ECO II 3220 Brushless Motor 500KV - HQ 10 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
47.99	3.19	857	153.1	5.6	6473	30
47.96	6.55	1483	314.1	4.72	8397	40
47.91	11.74	2281	562.5	4.06	10304	50
47.82	18.94	3170	905.7	3.5	12156	60
47.73	28.18	4092	1345	3.04	13712	70
47.62	40.95	5070	1950	2.6	15093	80
47.49	55.28	6222	2625.2	2.37	16620	90
47.32	74.39	7323	3520.1	2.08	17832	100

ECO II 3220 Brushless Motor 500KV - HQ 11 x 4.5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
47.97	3.16	854	151.6	5.63	6455	30
47.94	6.54	1520	313.5	4.85	8363	40
47.88	11.73	2372	561.6	4.22	10300	50
47.79	18.84	3297	900.4	3.66	12101	60
47.71	27.82	4256	1327.3	3.21	13702	70
47.6	39.69	5372	1889.2	2.84	15256	80
47.47	54.23	6501	2574.3	2.53	16648	90
47.32	71.56	7242	3386.2	2.14	18010	100

700KV

ECO II 3220 Brushless Motor 700KV - GF 10 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.02	3.8	685	121.7	5.63	5966	30
31.98	7.47	1155	238.9	4.83	7719	40
31.92	13.03	1751	415.9	4.21	9461	50
31.83	20.73	2430	659.8	3.68	11159	60
31.7	30.94	3193	980.8	3.26	12612	70
31.57	42.72	3951	1348.7	2.93	14074	80
31.44	57.89	4814	1820.1	2.64	15457	90
31.32	76.58	5745	2398.5	2.4	16779	100

ECO II 3220 Brushless Motor 700KV - HQ 10 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.02	3.92	718	125.5	5.72	5990	30
31.98	7.83	1217	250.4	4.86	7748	40
31.92	13.88	1870	443	4.22	9464	50
31.84	22.18	2582	706.2	3.66	11090	60
31.71	33.36	3417	1057.8	3.23	12522	70
31.6	46.5	4224	1469.4	2.87	13894	80
31.44	63.51	5051	1996.8	2.53	15046	90
31.26	82.84	5978	2589.6	2.31	16314	100

ECO II 3220 Brushless Motor 700KV - HQ 11 x 4.5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.02	3.91	716	125.2	5.72	5991	30
31.98	7.85	1258	251	5.01	7724	40
31.92	13.93	1942	444.6	4.37	9452	50
31.84	22.43	2737	714.2	3.83	11072	60
31.72	33.17	3579	1052.2	3.4	12528	70
31.6	46.23	4458	1460.9	3.05	13916	80
31.45	62.67	5352	1971	2.72	15125	90
31.28	81.52	6276	2549.9	2.46	16392	100

1000KV

ECO II 3220 Brushless Motor 1000KV - GF 9 x 4.5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
24.03	5.9	666	141.8	4.7	3635	30
24.01	9.57	1008	229.8	4.39	4368	40
23.97	14.62	1393	350.4	3.97	5150	50
23.91	22.78	1948	544.7	3.58	6090	60
23.85	33.29	2550	794	3.21	6927	70
23.77	47.61	3267	1131.7	2.89	7746	80
23.66	65.01	3937	1538.1	2.56	8465	90
23.51	87.22	4612	2050.5	2.25	9294	100

ECO II 3220 Brushless Motor 1000KV - HQ 9 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
24.08	6.2	717	149.3	4.8	3415	30
24.04	10.11	1078	243	4.44	4116	40
24	17.03	1588	408.7	3.89	4987	50
23.94	27.9	2256	667.9	3.38	5914	60
23.86	41.69	2952	994.7	2.97	6658	70
23.76	57.93	3736	1376.4	2.71	7407	80
23.62	78.22	4520	1847.6	2.45	8029	90
23.46	105.98	5361	2486.3	2.16	8752	100

ECO II 3220 Brushless Motor 1000KV - GF 10 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
24.06	6.35	805	152.8	5.27	3138	30
24.03	10.99	1241	264.1	4.7	3870	40
23.98	19.39	1882	465	4.05	4782	50
23.92	30.88	2615	738.6	3.54	5654	60
23.83	45.68	3386	1088.6	3.11	6425	70
23.71	63.2	4110	1498.5	2.74	7112	80
23.6	83.83	4903	1978.4	2.48	7755	90
23.42	110.62	5829	2590.7	2.25	8327	100

ECO II 3220 Brushless Motor 1000KV - HQ 10 x 5, 3-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
24.07	6.36	804	153.1	5.25	3118	30
24.03	11.43	1278	274.7	4.65	3893	40
23.99	20.27	1954	486.3	4.02	4802	50
23.9	32.89	2725	786.1	3.47	5625	60
23.8	49.63	3591	1181.2	3.04	6338	70
23.69	69.09	4392	1636.7	2.68	6916	80
23.55	90.92	5144	2141.2	2.4	7498	90
23.4	117.76	5867	2755.6	2.13	8004	100

ECO II 3220 Brushless Motor 1000KV - GF 8 x 8E, 2-blade
VoltageV	CurrentA	Thrustg	PowerW	Efficiencyg/W	SpeedRPM	Throttle%
32.02	7.91	752	253.3	2.97	4648	30
31.97	12.78	1126	408.6	2.76	5571	40
31.92	21.79	1595	695.5	2.29	6629	50
31.84	34.57	2231	1100.7	2.03	7738	60
31.74	51.87	2881	1646.4	1.75	8719	70
31.62	72.02	3465	2277.3	1.52	9609	80
31.48	97.06	4061	3055.4	1.33	10380	90
31.29	127.42	4595	3987	1.15	11148	100

APPLICATIONS

large FPV8 to 11 inch propeller systemshigh-agility multirotor platforms3115 motor upgradesspecialty builds
