Built robust
Resists crash-induced damage to help preserve motor alignment and consistent output.
E3 Series / 28XX / E3 Series

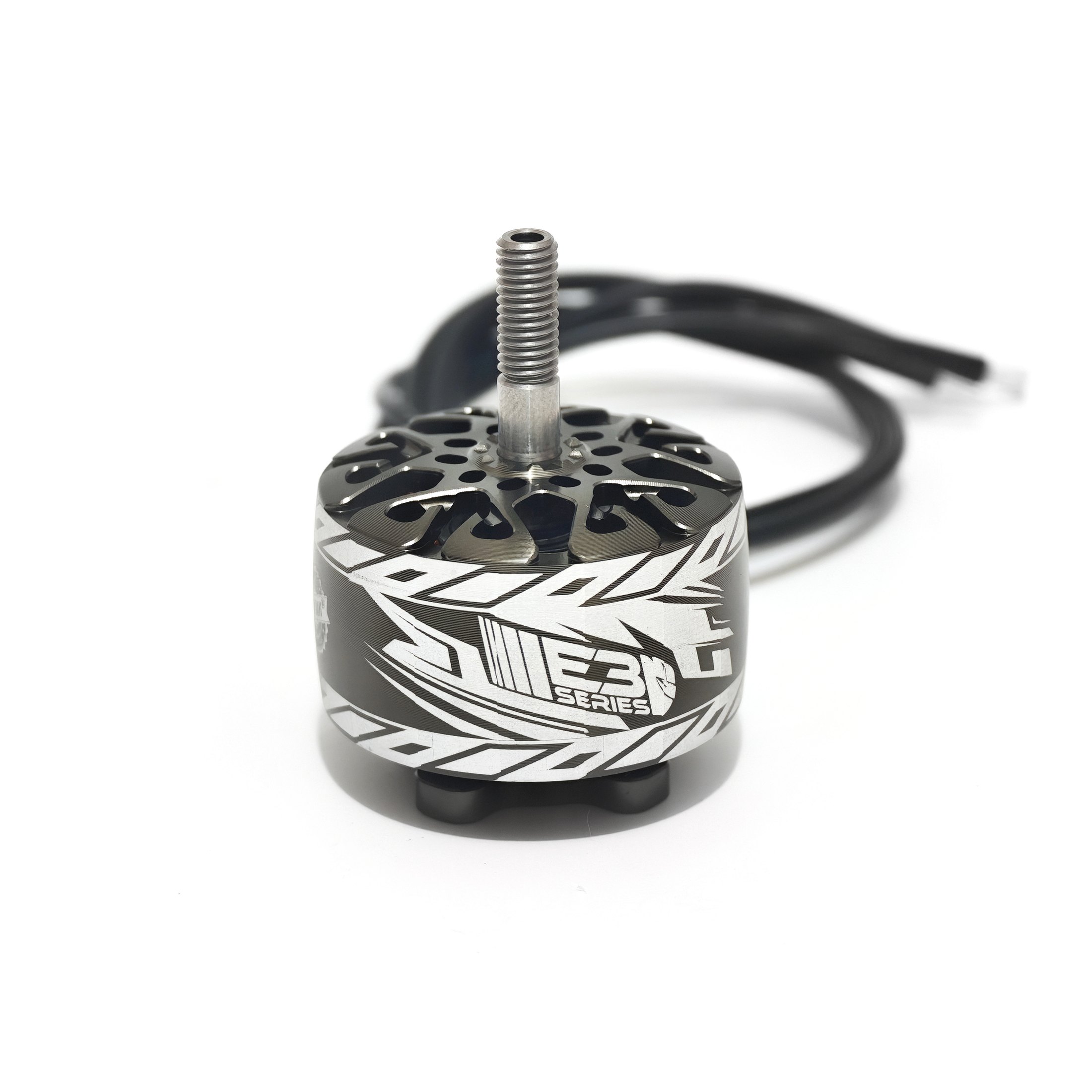

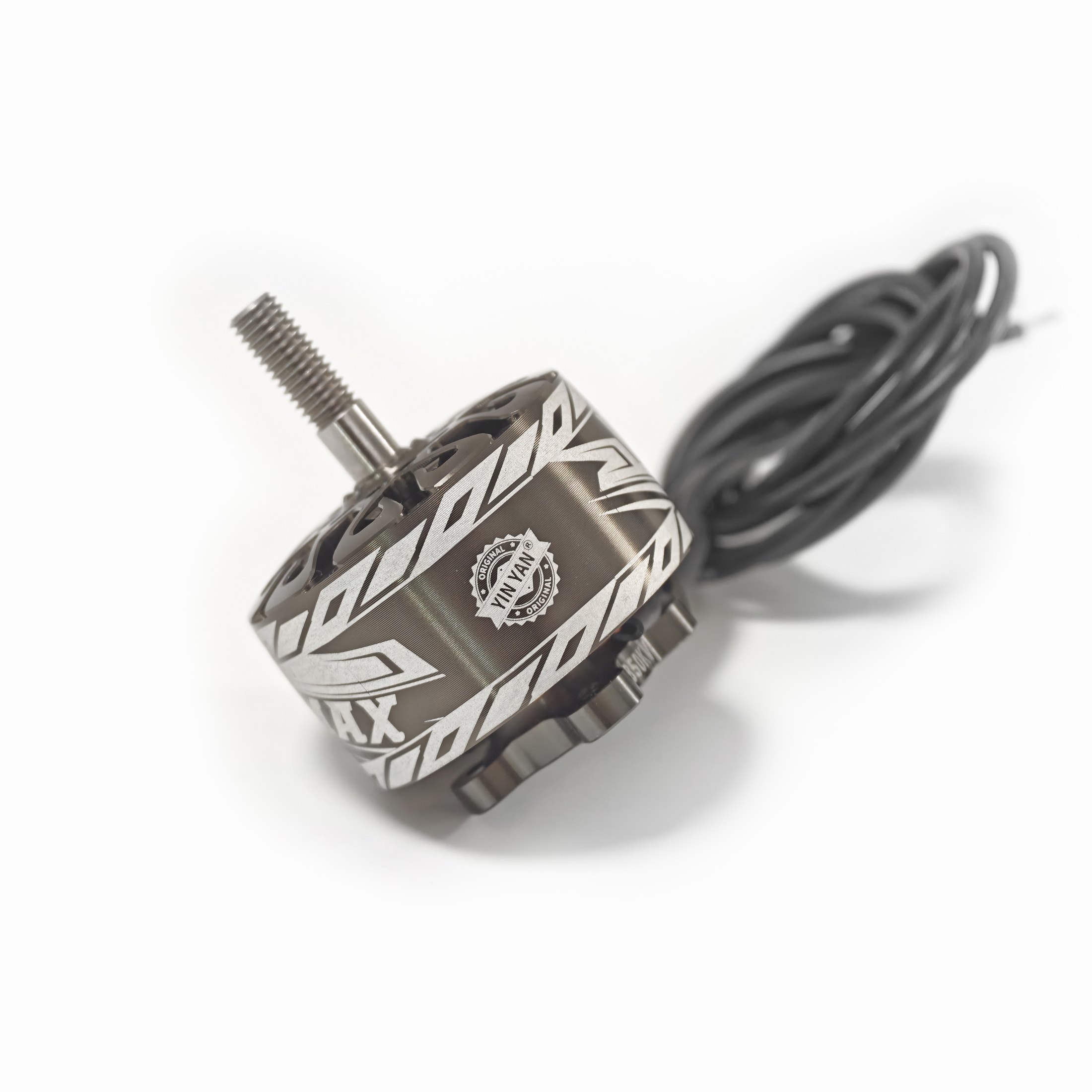

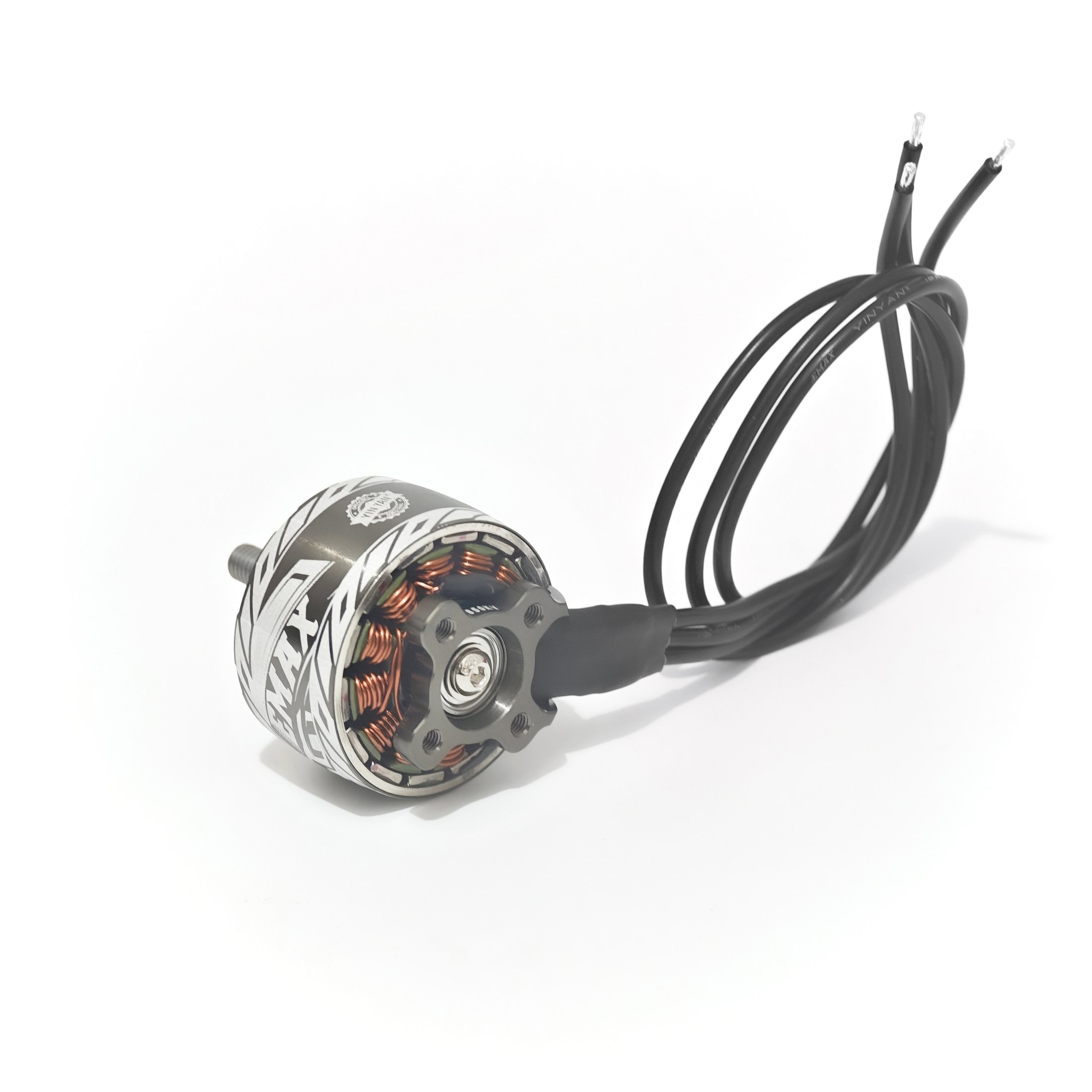

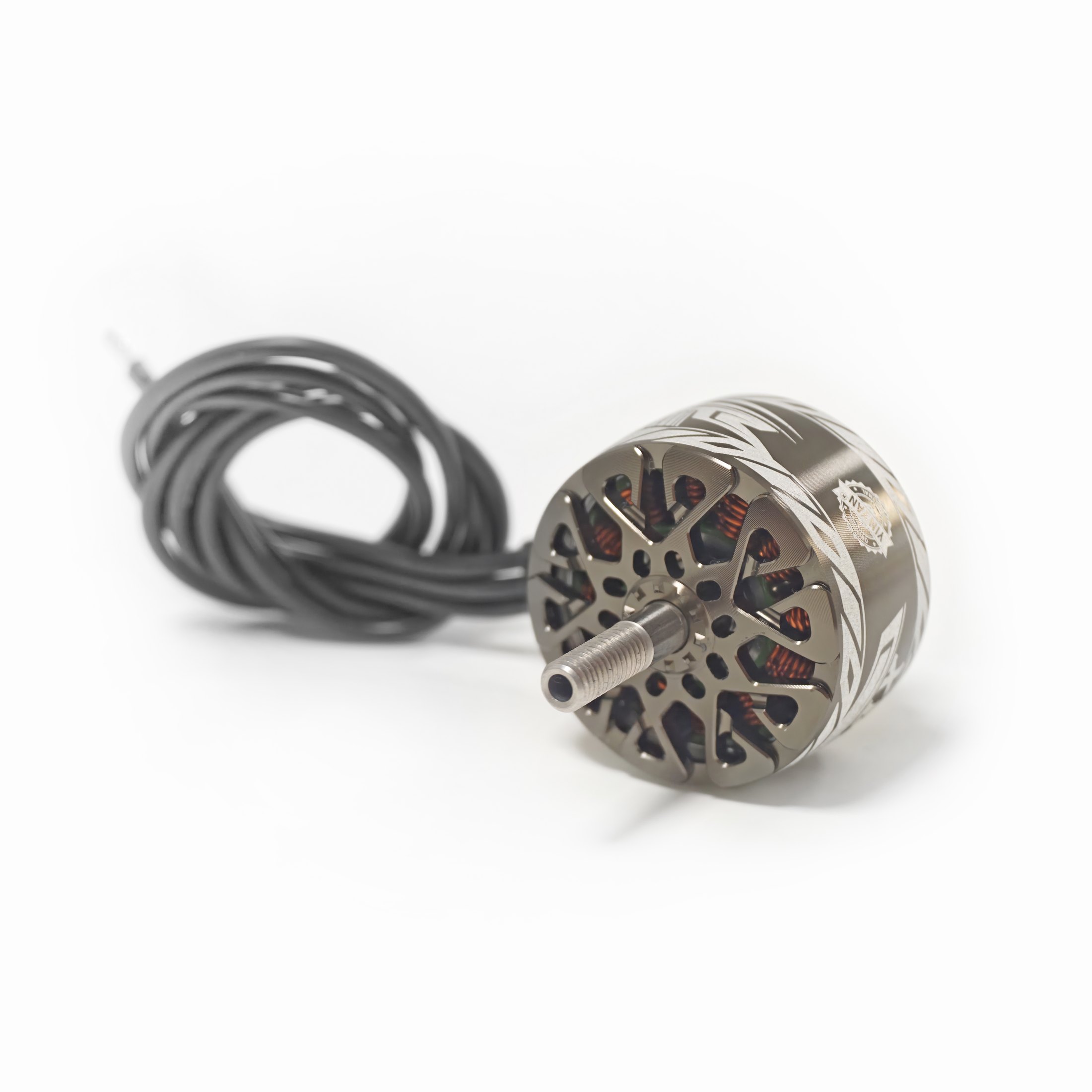

E3 2814 Brushless Motor
A durable high-power 2814 brushless motor for 8-10 inch long-range, cinematic and high-load FPV platforms, available in 850KV and 1100KV for 3-6S systems.
850KV1100KV
KEY FEATURES
Designed for FPV performance tuning
- A rugged steel shaft and AL 7075 anodized housing resist deformation and help preserve alignment after impact.
- N52SH arc magnets, a one-piece outer rotor, and single-strand winding maintain torque while controlling heat under sustained load.
- A G1-level precision bearing reduces high-speed noise and vibration for reliable operation with 8-10 inch propellers.
- Verified load-test data covers 850KV and 1100KV configurations across six propeller combinations.
SPECIFICATIONS
Product snapshot
- Stator Size
- 2814
- Series
- E3 Series
- KV Options
- 850KV, 1100KV
- Motor Dimensions
- 35.1 x 45.5 mm
- Framework
- 12N14P
- Battery
- 3-6S
- Propeller
- 8-10 inch
- Weight
- 81-82 g without silicone wire
- Bearing Shaft
- 5 mm
- Prop Adapter Shaft Thread
- M5
- Shaft Thread
- CW
- Mounting Pattern
- 19 x 19 mm, M3
- Lead
- 270 mm 18 AWG silicone wire
VARIANT SPECIFICATIONS
KV configuration matrix
| KV | Battery cells | Propeller | Idle current | Internal resistance | Peak current | Maximum power |
|---|---|---|---|---|---|---|
| 850KV | 3-6S | 9-10 inch | 1.3 A @ 10 V | 61 mOhm | 58.4 A @ 6S | 1460 W @ 6S |
| 1100KV | 3-6S | 8-9 inch | 1.8 A @ 10 V | 45 mOhm | 75.8 A @ 6S | 1895 W @ 6S |
ENGINEERING AND PERFORMANCE
Built for high power that lasts
Every critical component is engineered to maintain performance under heat, high RPM and impact, giving 8-10 inch FPV aircraft dependable power throughout demanding flights.
Withstands heat
Reduces heat-related power fading during sustained high-RPM and heavy-load operation.
Rapid response
Minimizes throttle lag while maintaining the low-end torque demanded by large propellers.
Critical component construction
Rugged steel shaft
Resists bending to reduce vibration and rotor contact after hard impacts.
AL 7075 anodized housing
Combines impact resistance with a lightweight and corrosion-resistant structure.
One-piece outer rotor
Secures the magnets firmly to reduce jitter and power loss under impact.
N52SH arc magnets
Retains magnetic strength at elevated temperatures to limit torque drop-off.
Single-strand winding
Lowers internal resistance and helps control excess heat under heavy load.
G1-level precision bearing
Reduces high-speed noise and vibration while supporting a longer service life.
Choose the E3 2814 KV for your aircraft
Efficiency and long range
3-6S power for 9-10 inch long-range, cinematic and high-load FPV aircraft.
Responsive high-load power
3-6S power for responsive 8-9 inch freestyle, exploration and specialty FPV builds.
High performance with accessibility
The E3 Series combines optimized materials and manufacturing with durable power and efficiency for demanding FPV aircraft.
A reliable platform for modern FPV
Engineered for demanding conditions while maintaining sustained output for long-range, cinematic, high-load and freestyle FPV applications.
OFFICIAL GRAPHICS
Engineering drawing and specifications
| SPECIFICATIONS | |
|---|---|
| Framework | 12N14P |
| Length | 45.5 mm |
| Diameter | 35.1 mm |
| Battery cells - 850KV | 3-6S |
| Battery cells - 1100KV | 3-6S |
| Recommended propeller | 8-10 inch |
| Weight - 850KV | 82 g without silicone wire |
| Weight - 1100KV | 81 g without silicone wire |
| Prop adapter shaft thread | M5 |
| Bearing shaft | 5 mm |
| Shaft thread | CW |
| FEATURES | |
| G1-level rolling-element precision bearing | |
| Steel shaft | |
| AL 7075 anodized housing | |
| 19 x 19 mm M3 mounting-hole pattern | |
| Single-strand winding | |
| 270 mm 18 AWG silicone wire | |

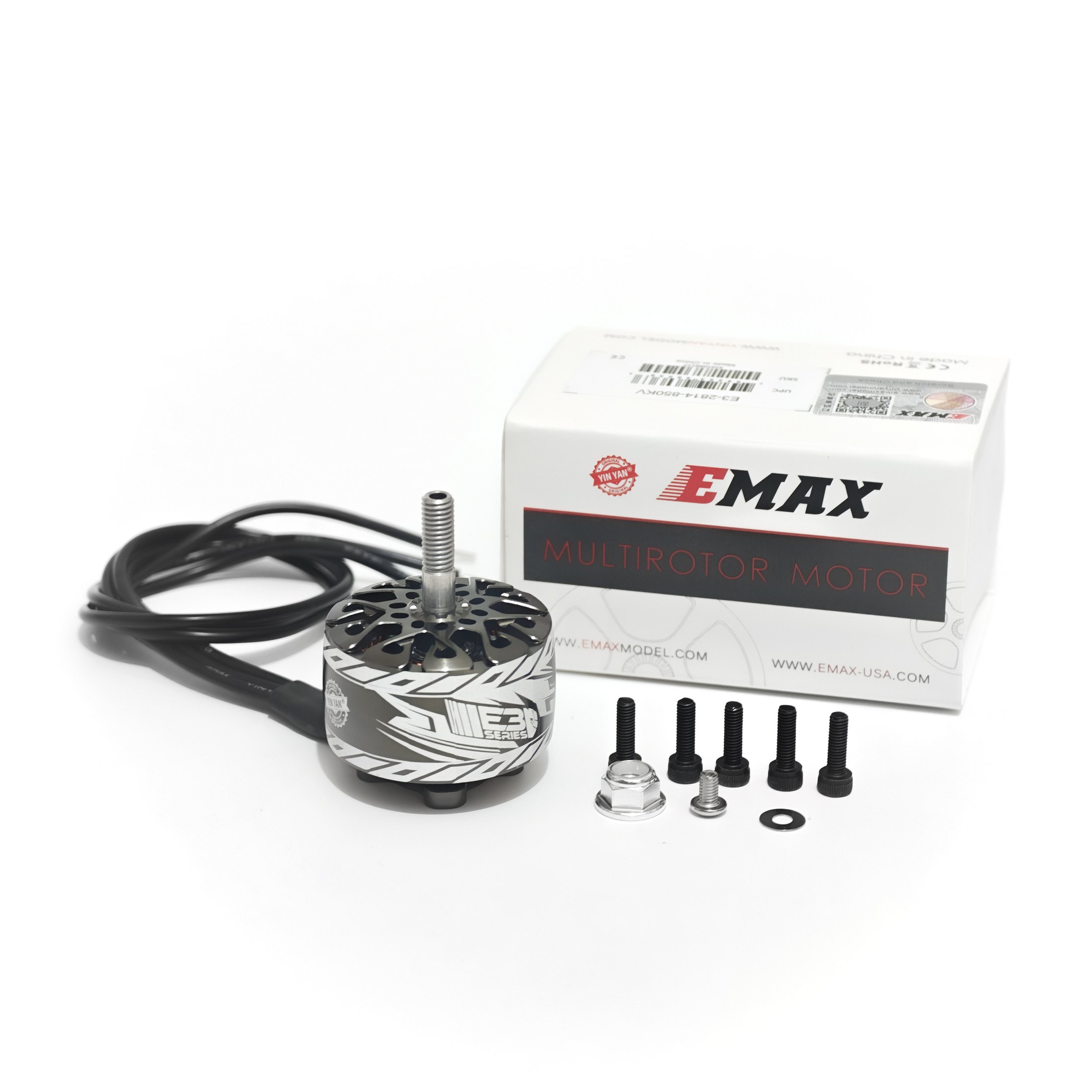

| PACKAGE INCLUDES | |
| 5 x M3 x 10 screws | |
| 1 x aluminum M5 nyloc nut | |
| 1 x washer and screw for shaft | |
LOAD TEST DATA
Verified performance data
The following measurements are from EMAX load-test records. Results may vary with battery, propeller, environment, and installation conditions.
850KV
GF 9 x 4.5, 3-blade — 25 V
| VoltageV | CurrentA | Thrustg | PowerW | Efficiencyg/W | SpeedRPM | Throttle% |
|---|---|---|---|---|---|---|
| 25 | 2.42 | 395 | 60.5 | 6.53 | 5721 | 30 |
| 25 | 4.7 | 680 | 117.5 | 5.79 | 7312 | 40 |
| 25 | 8.19 | 1040 | 204.75 | 5.08 | 8884 | 50 |
| 25 | 12.9 | 1428 | 322.5 | 4.43 | 10391 | 60 |
| 25 | 18.8 | 1820 | 470 | 3.87 | 11704 | 70 |
| 25 | 25.6 | 2232 | 640 | 3.49 | 12965 | 80 |
| 25 | 34.1 | 2680 | 852.5 | 3.14 | 14127 | 90 |
| 25 | 45.2 | 3227 | 1130 | 2.86 | 15350 | 100 |
HQ 9 x 5, 3-blade — 25 V
| VoltageV | CurrentA | Thrustg | PowerW | Efficiencyg/W | SpeedRPM | Throttle% |
|---|---|---|---|---|---|---|
| 25 | 2.39 | 386 | 59.75 | 6.46 | 5721 | 30 |
| 25 | 4.64 | 668 | 116 | 5.76 | 7314 | 40 |
| 25 | 8.1 | 1024 | 202.5 | 5.06 | 8882 | 50 |
| 25 | 12.8 | 1420 | 320 | 4.44 | 10383 | 60 |
| 25 | 18.7 | 1814 | 467.5 | 3.88 | 11687 | 70 |
| 25 | 25.6 | 2247 | 640 | 3.51 | 12930 | 80 |
| 25 | 33.9 | 2651 | 847.5 | 3.13 | 14116 | 90 |
| 25 | 45.1 | 3220 | 1127.5 | 2.86 | 15330 | 100 |
GF 10 x 5, 3-blade — 25 V
| VoltageV | CurrentA | Thrustg | PowerW | Efficiencyg/W | SpeedRPM | Throttle% |
|---|---|---|---|---|---|---|
| 25 | 3.03 | 545 | 75.75 | 7.19 | 5437 | 30 |
| 25 | 6.27 | 934 | 156.75 | 5.96 | 6975 | 40 |
| 25 | 10.8 | 1365 | 270 | 5.06 | 8354 | 50 |
| 25 | 17.2 | 1853 | 430 | 4.31 | 9661 | 60 |
| 25 | 24.8 | 2350 | 620 | 3.79 | 10813 | 70 |
| 25 | 33.6 | 2820 | 840 | 3.36 | 11810 | 80 |
| 25 | 43.7 | 3230 | 1092.5 | 2.96 | 12758 | 90 |
| 25 | 58.4 | 3940 | 1460 | 2.7 | 13780 | 100 |
1100KV
GF 8 x 4, 3-blade — 25 V
| VoltageV | CurrentA | Thrustg | PowerW | Efficiencyg/W | SpeedRPM | Throttle% |
|---|---|---|---|---|---|---|
| 25 | 3.46 | 480 | 86.5 | 5.55 | 7428 | 30 |
| 25 | 6.71 | 808 | 167.75 | 4.82 | 9453 | 40 |
| 25 | 11.3 | 1194 | 282.5 | 4.23 | 11373 | 50 |
| 25 | 17.5 | 1593 | 437.5 | 3.64 | 13101 | 60 |
| 25 | 25.4 | 2038 | 635 | 3.21 | 14792 | 70 |
| 25 | 34.7 | 2530 | 867.5 | 2.92 | 16357 | 80 |
| 25 | 45.2 | 2957 | 1130 | 2.62 | 17812 | 90 |
| 25 | 60.6 | 3640 | 1515 | 2.4 | 19160 | 100 |
GF 8 x 6, 3-blade — 25 V
| VoltageV | CurrentA | Thrustg | PowerW | Efficiencyg/W | SpeedRPM | Throttle% |
|---|---|---|---|---|---|---|
| 25 | 4.08 | 550 | 102 | 5.39 | 7196 | 30 |
| 25 | 7.86 | 903 | 196.5 | 4.6 | 9099 | 40 |
| 25 | 13.4 | 1305 | 335 | 3.9 | 10983 | 50 |
| 25 | 20.4 | 1712 | 510 | 3.36 | 12624 | 60 |
| 25 | 29.2 | 2156 | 730 | 2.95 | 14135 | 70 |
| 25 | 39.6 | 2610 | 990 | 2.64 | 15553 | 80 |
| 25 | 51.4 | 3104 | 1285 | 2.42 | 16851 | 90 |
| 25 | 68.3 | 3710 | 1707.5 | 2.17 | 18260 | 100 |
GF 9 x 4.5, 3-blade — 25 V
| VoltageV | CurrentA | Thrustg | PowerW | Efficiencyg/W | SpeedRPM | Throttle% |
|---|---|---|---|---|---|---|
| 25 | 4.43 | 613 | 110.75 | 5.53 | 6983 | 30 |
| 25 | 8.79 | 1040 | 219.75 | 4.73 | 8869 | 40 |
| 25 | 15.1 | 1525 | 377.5 | 4.04 | 10657 | 50 |
| 25 | 23.2 | 2016 | 580 | 3.48 | 12242 | 60 |
| 25 | 32.7 | 2490 | 817.5 | 3.05 | 13524 | 70 |
| 25 | 44.3 | 2963 | 1107.5 | 2.68 | 14752 | 80 |
| 25 | 57.6 | 3408 | 1440 | 2.37 | 15807 | 90 |
| 25 | 75.8 | 4080 | 1895 | 2.15 | 17230 | 100 |
APPLICATIONS
Recommended use
8-10 inch FPVlong-range FPVcinematic FPV platformshigh-load aircraftfreestyle and exploration builds
