Built robust
Resists crash-induced damage to help preserve alignment and consistent output.
E3 Series / 14XX / E3 Series

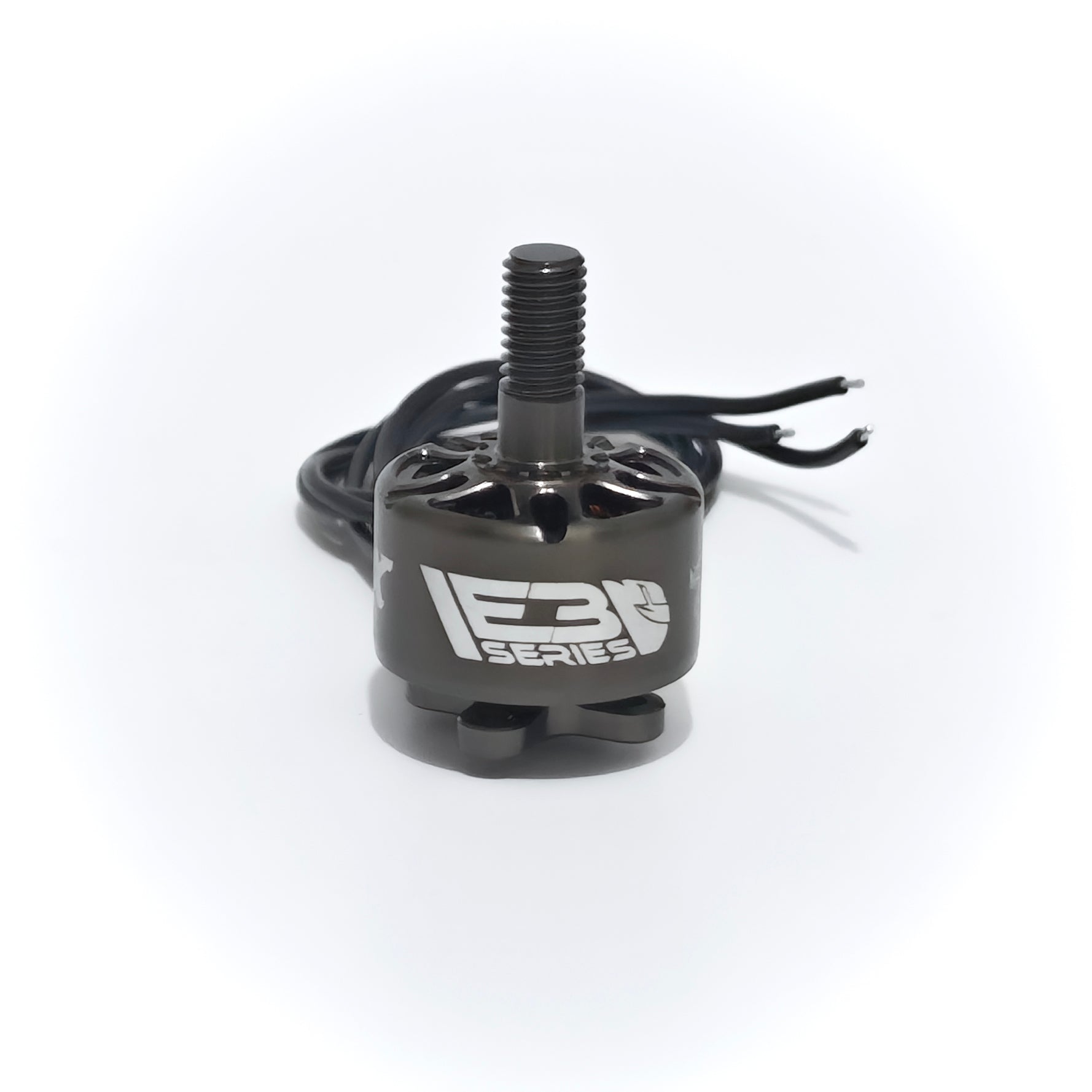

E3 1407 Brushless Motor
A compact 1407 brushless motor for responsive 3-4 inch FPV platforms, available in 2800KV, 3300KV and 4100KV for 3-4S systems.
2800KV3300KV4100KV
KEY FEATURES
Designed for FPV performance tuning
- A steel shaft and AL 7075 anodized housing provide a compact, impact-resistant structure for demanding 3-4 inch FPV builds.
- N52SH arc magnets, a one-piece outer rotor and single-strand winding support responsive power while controlling heat.
- An NSK precision bearing reduces high-speed noise and vibration across the 2800KV, 3300KV and 4100KV range.
- Three KV options cover efficient 4S operation and responsive 3-4S aircraft with 3-4 inch propellers.
SPECIFICATIONS
Product snapshot
- Stator Size
- 1407
- Series
- E3 Series
- KV Options
- 2800KV, 3300KV, 4100KV
- Motor Dimensions
- 19.1 x 29.8 mm
- Framework
- 9N12P
- Battery
- 3-4S, KV dependent
- Propeller
- 3-4 inch
- Weight
- 15.4 g with wire
- Bearing Shaft
- 2 mm
- Prop Adapter Shaft
- M5 CW thread
- Mounting Pattern
- 12 x 12 mm, M2
- Lead
- 150 mm 24 AWG silicone wire
VARIANT SPECIFICATIONS
KV configuration matrix
| KV | Battery cells | Propeller | Idle current | Internal resistance | Peak current | Maximum power |
|---|---|---|---|---|---|---|
| 2800KV | 4S | 3-4 inch | 0.8 A @ 10 V | 190 mOhm | 16.5 A @ 4S | 264 W @ 4S |
| 3300KV | 3-4S | 3-4 inch | 0.9 A @ 10 V | 143 mOhm | 22.5 A @ 4S | 360 W @ 4S |
| 4100KV | 3-4S | 3-4 inch | 1.3 A @ 10 V | 98 mOhm | 25.8 A @ 4S | 413 W @ 4S |
ENGINEERING AND PERFORMANCE
Compact power built to last
Every critical component is engineered to maintain responsive performance under heat, high RPM and impact in 3-4 inch FPV aircraft.
Withstands heat
Controls heat-related power fading during sustained high-RPM operation.
Rapid response
Delivers crisp throttle response for compact 3-4 inch FPV platforms.
Critical component construction
Steel shaft
Resists bending to reduce vibration and rotor contact after impact.
AL 7075 anodized housing
Combines impact resistance with a lightweight, corrosion-resistant structure.
One-piece outer rotor
Secures the magnets to reduce jitter and power loss under impact.
N52SH arc magnets
Retains magnetic strength at elevated temperatures to limit torque drop-off.
Single-strand winding
Supports efficient current delivery and heat control in a compact stator.
NSK precision bearing
Reduces high-speed noise and vibration while supporting service life.
Choose the E3 1407 KV for your aircraft
Efficient 4S control
A controlled 4S option for 3-4 inch FPV platforms.
Balanced response
A versatile 3-4S option balancing efficiency and punch.
Maximum agility
A high-response 3-4S option for agile lightweight builds.
Performance without excess weight
The E3 1407 combines optimized materials and compact construction for demanding 3-4 inch FPV aircraft.
A flexible compact power platform
Three KV options cover controlled 4S efficiency through fast 3-4S response.
OFFICIAL GRAPHICS

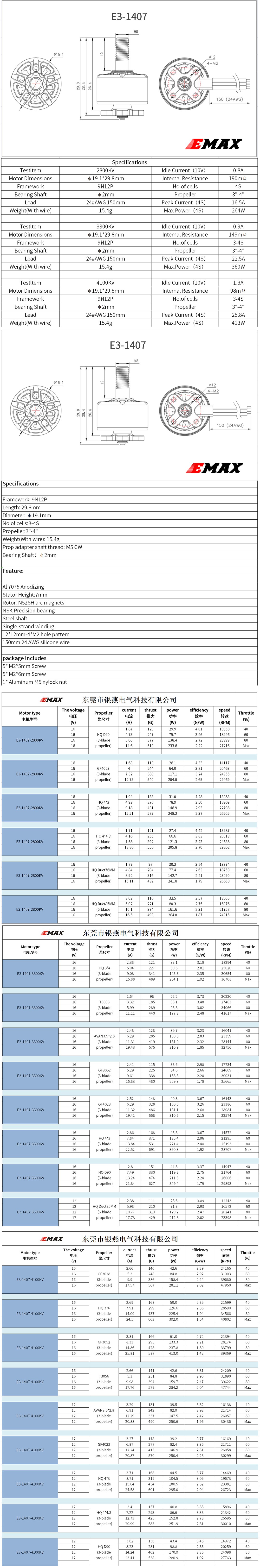

Engineering drawing and specifications
| SPECIFICATIONS | |
|---|---|
| Framework | 9N12P |
| Motor dimensions | 19.1 x 29.8 mm |
| Battery cells - 2800KV | 4S |
| Battery cells - 3300KV / 4100KV | 3-4S |
| Recommended propeller | 3-4 inch |
| Weight | 15.4 g with wire |
| Prop adapter shaft | M5 CW thread |
| Bearing shaft | 2 mm |
| FEATURES | |
| NSK precision bearing | |
| Steel shaft | |
| AL 7075 anodized housing | |
| N52SH arc magnets | |
| 12 x 12 mm M2 mounting-hole pattern | |
| Single-strand winding | |
| 150 mm 24 AWG silicone wire | |

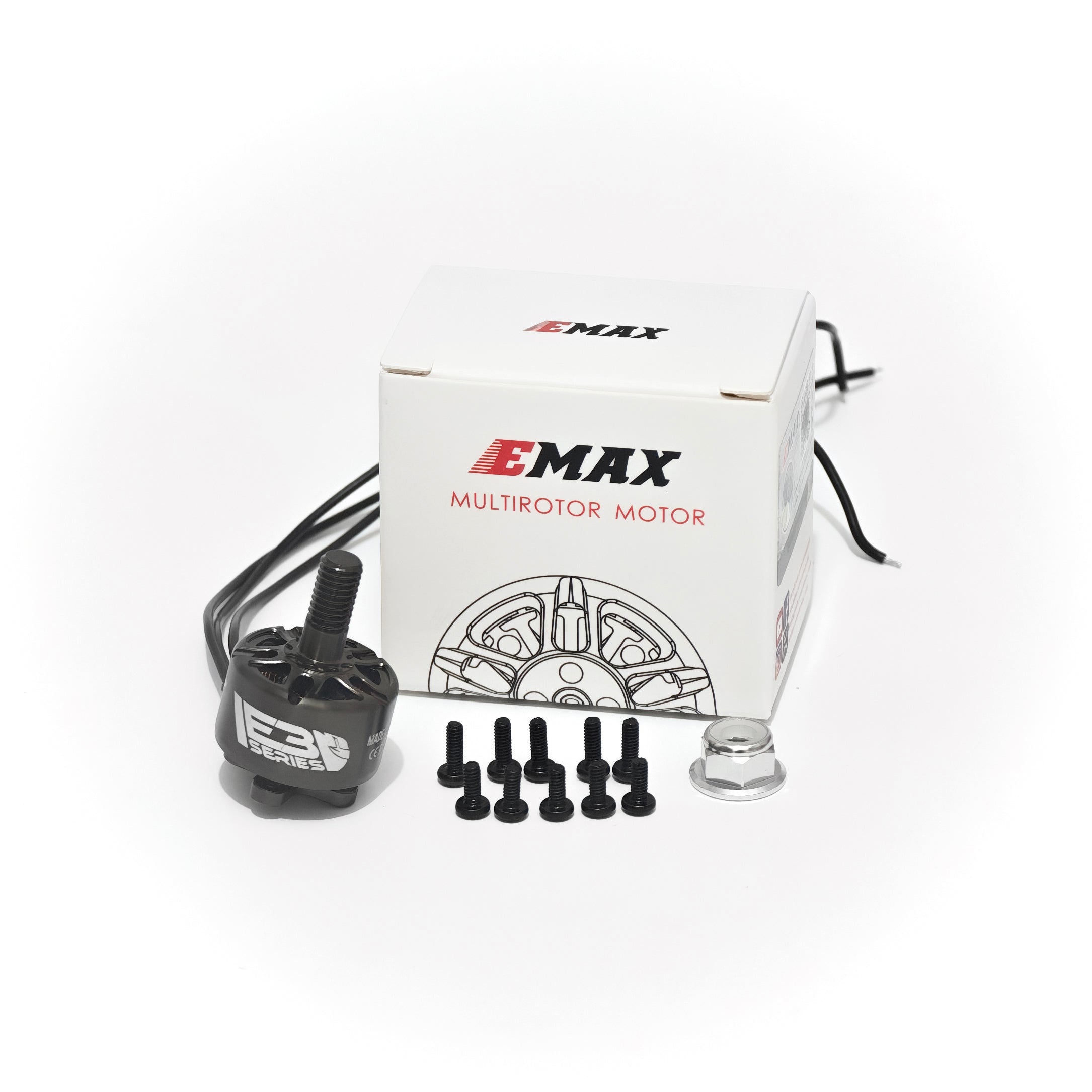

| PACKAGE INCLUDES | |
| 5 x M2 x 5 mm screws | |
| 5 x M2 x 6 mm screws | |
| 1 x aluminum M5 nyloc nut | |
APPLICATIONS
Recommended use
3-4 inch FPVlightweight freestylecompact cinematic platformsresponsive micro long-range builds
